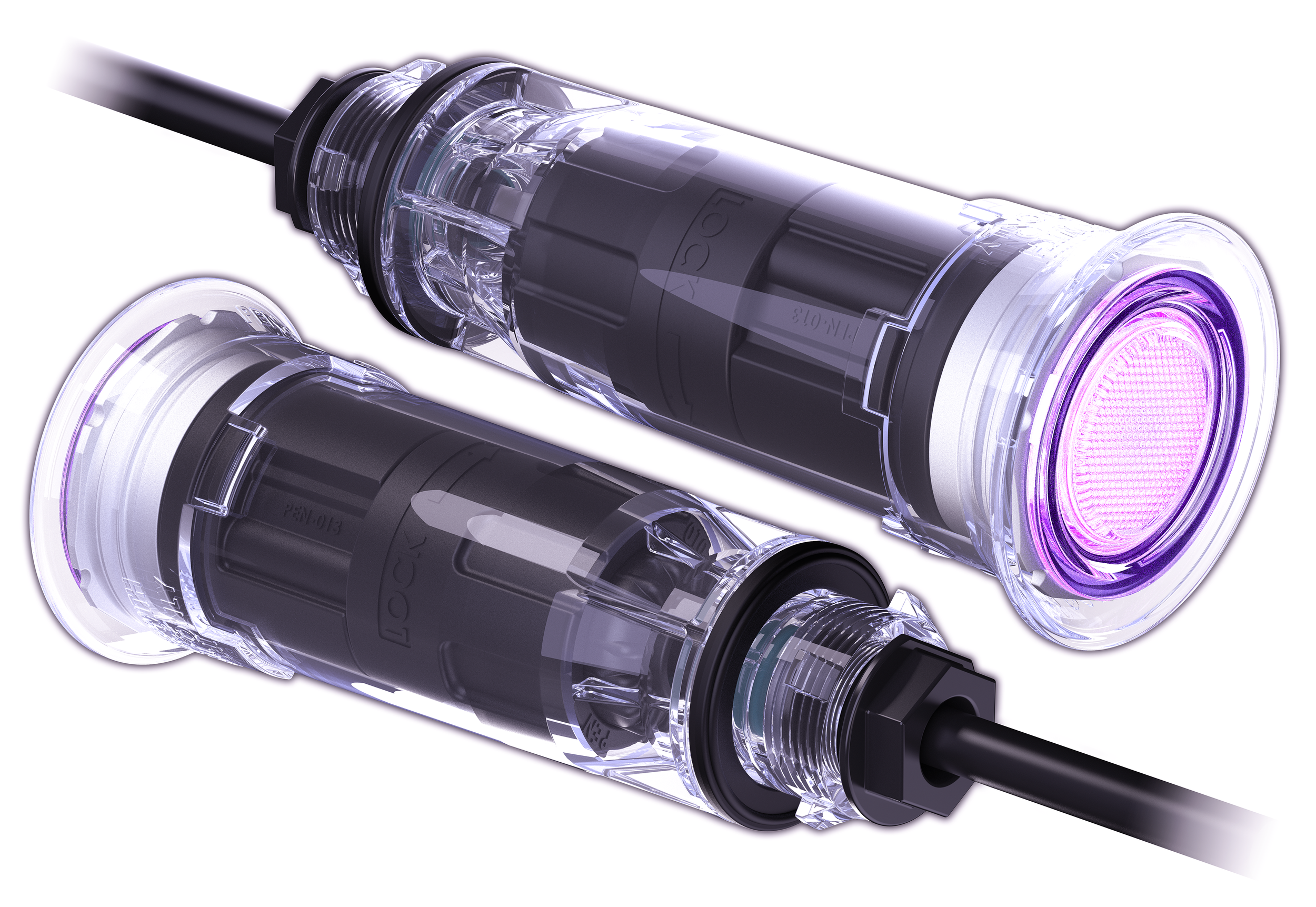

TITAN Retro TIRX Replacement Pool Light for Pentair GloBrite® fittings
An innovative pencil light retro-fit solution that’s easy to install, long lasting & serviceable!
TIRX Adaptor Installation
TIRX Adaptor Installation
A Perfect Fit

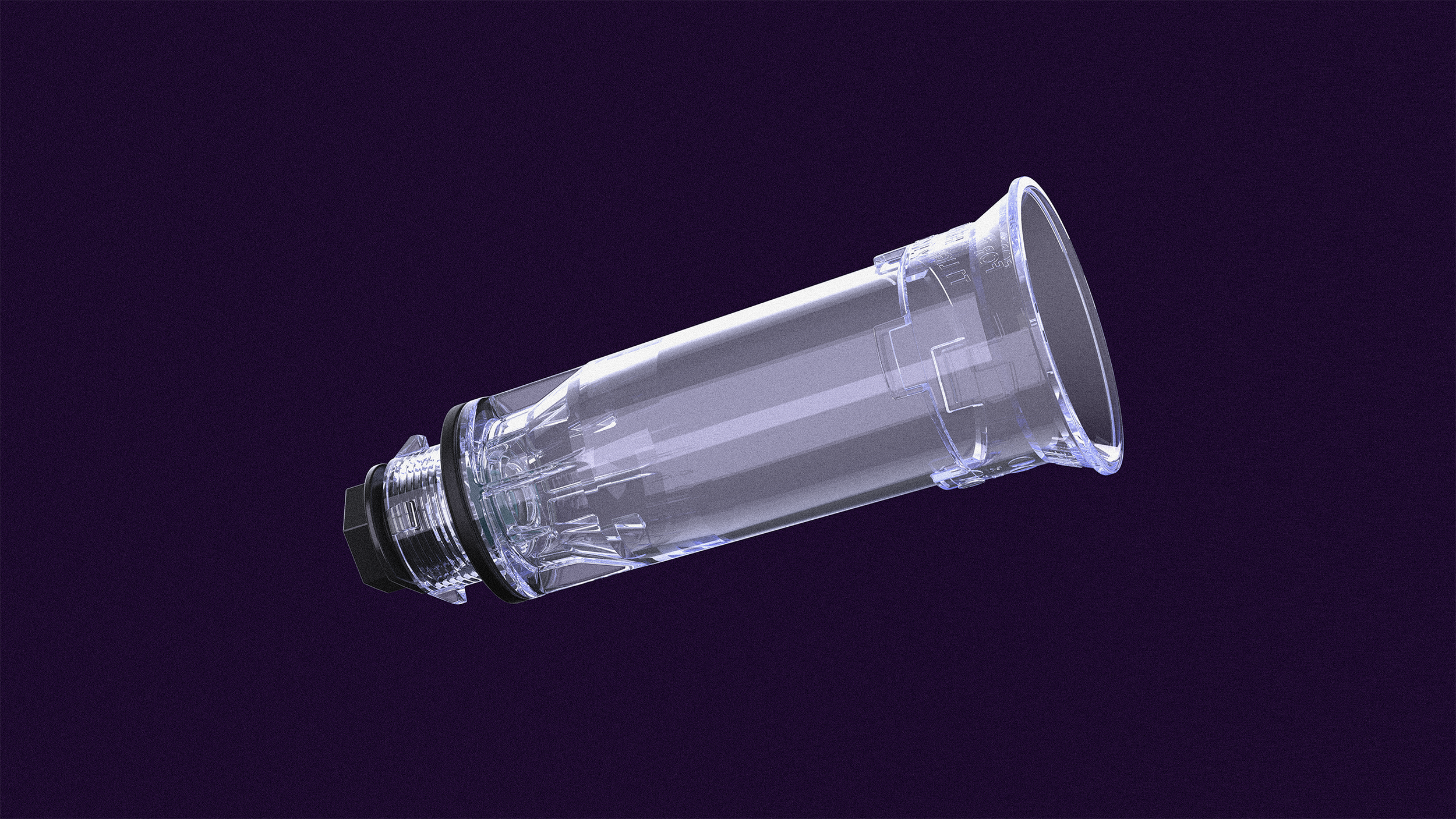

The Retro T1G is designed to be a compatible replacement light using the existing features of a Pentair GloBrite® niche/fitting to create a secure, sealed fitment.

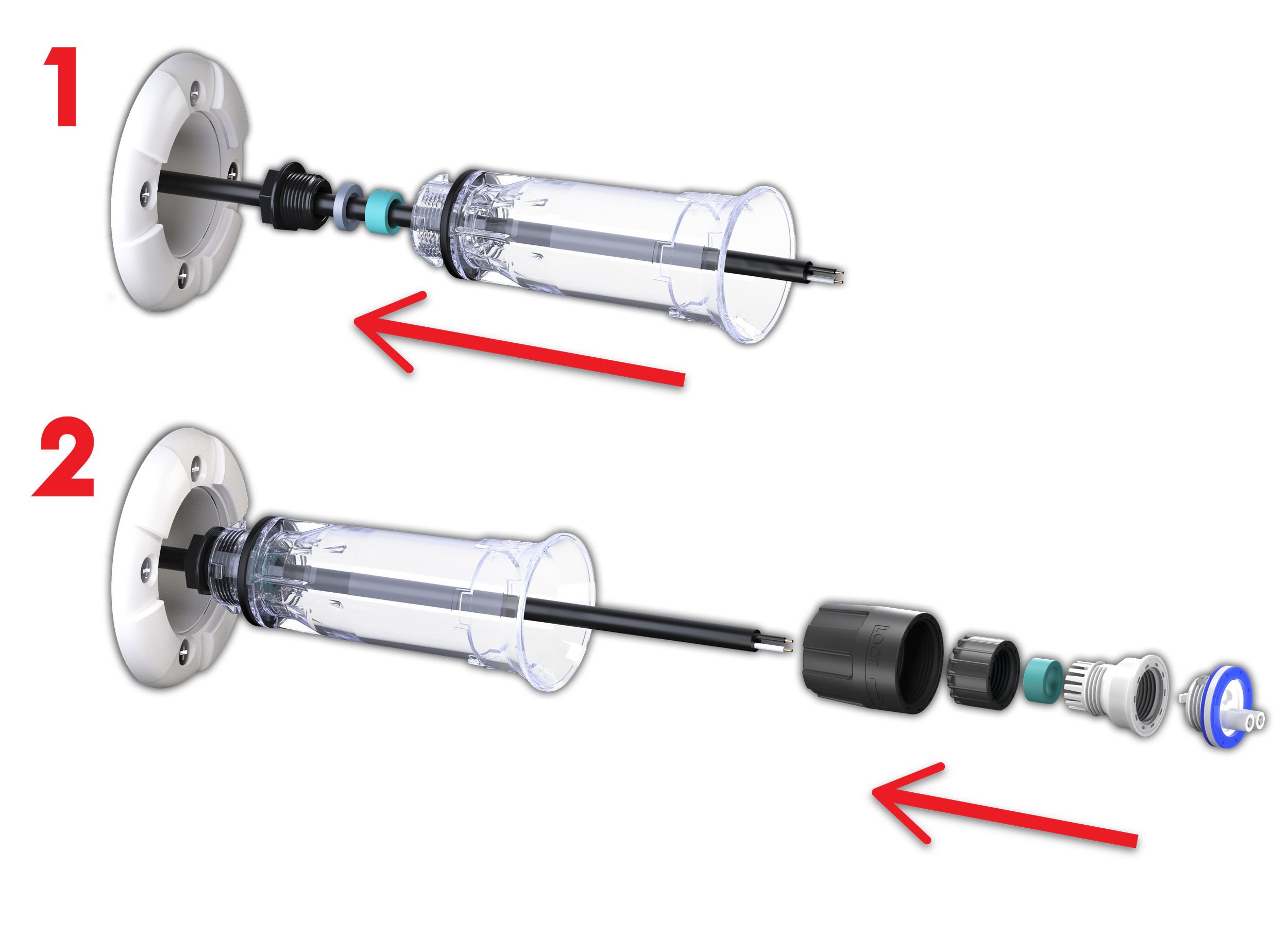

1. The Retro T1G Adapter, seals, washer and nut are fed onto the existing Globrite® or Microbrite® cable.
2. The Plug Assembly is assembled onto the end of the cable.

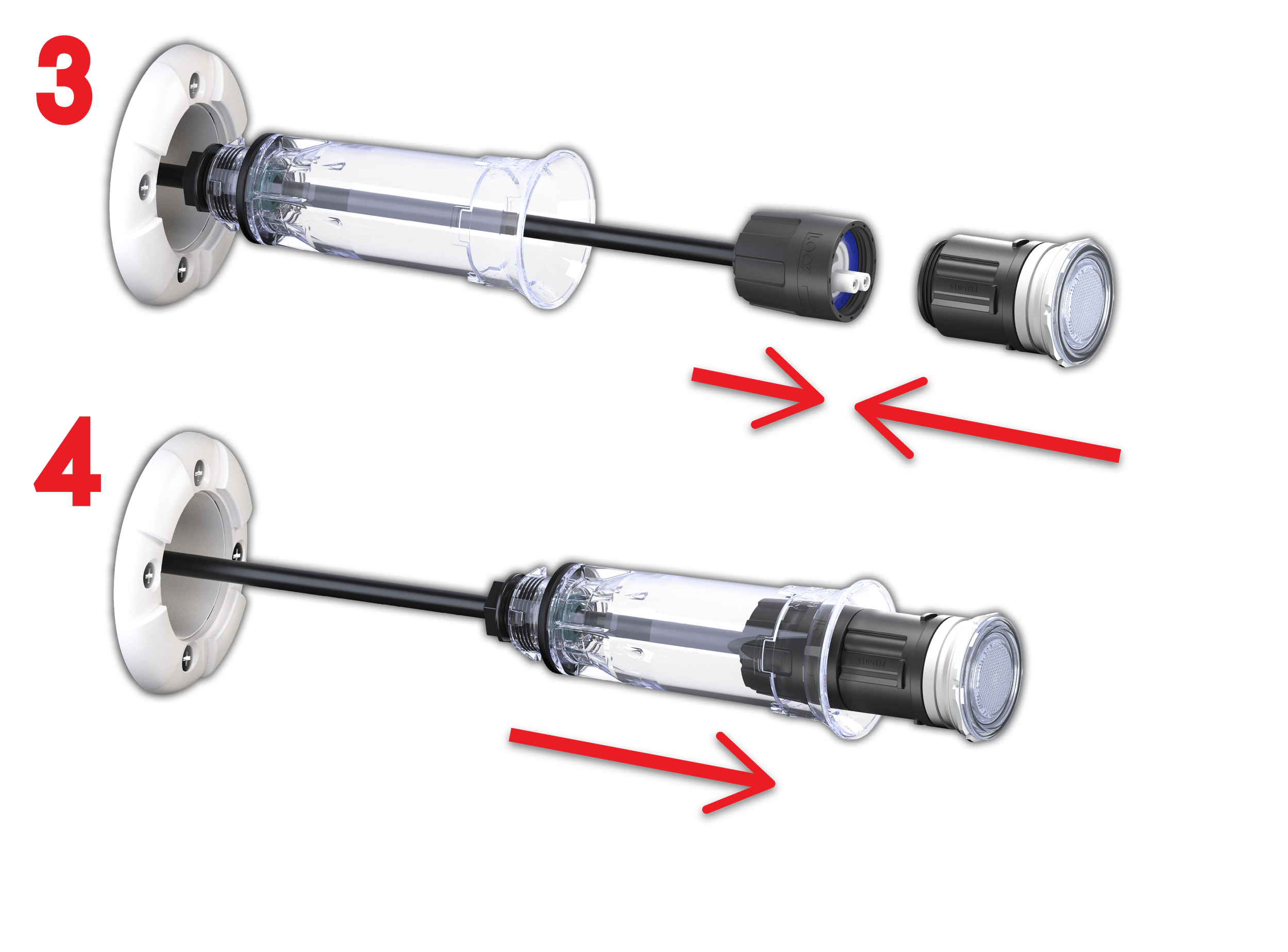

3. Attach the Light Assembly to the Plug.
4. Feed the Retro T1G adapter up the cable and over the Light Assembly.

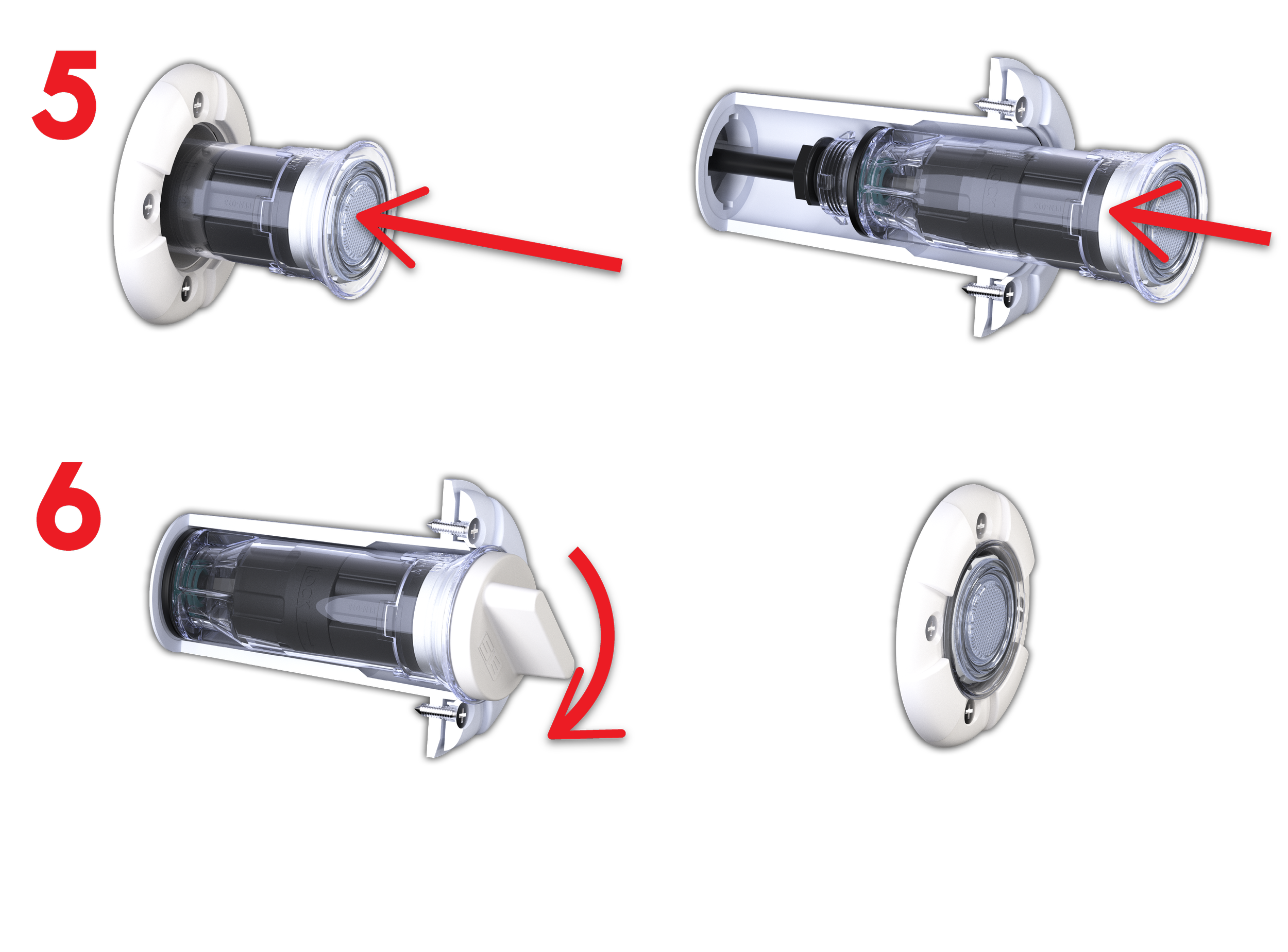

5. push the Light & Retro T1G adapter assembly into the existing niche/fitting, drawing cable through the conduit at the same time.
6. Using the included Locking Tool, twist the assembly 45 degrees clockwise to lock and seal the light in place.
compatible with globrite® niches
compatible with globrite® niches
Compatible with Pentair GloBrite® niche variants
TIRX Quick Connect
TIRX Quick Connect
Servicing Made Easy
Easily Remove the TITAN Retro TIRX light with the Quick Connect Plug
TIRX Effortless Install
TIRX Effortless Install
Light Installation Tool
Effortlessly install and maintain your TITAN Retro TIRX light with precision! Our innovative design allows you to seamlessly lock and secure the light into the existing fitting, ensuring a flawless installation. When service is needed, the specially engineered tool—included with every TIRX product—makes removal swift and hassle-free. Experience convenience and reliability, redefined.
TIRX Technical Specifications
TIRX Technical Specifications
| Model | Titan Retro (TIRX) |
|---|---|
| Light source | Ceramic Light Engine (LED) |
| Colours | MULTIPLUS (RGB+W)
|
| Dimming | Available on MULTIPLUS models when paired with an iRIS lighting controller |
| Rim colours | NA |
| Controller compatibility | |
| Spa Electrics | Wall switch operation · iRIS lighting controllers |
| Third-party automation |
Full third-party controller compatibility is available with MULTIPLUS models only.
Further compatibility information and setup instructions are in our controller guides, or contact us if you're unsure. |
| Installation & electrical | |
| Suitability | Concrete, Fibreglass, Vinyl |
| Compatible with | Pentair Globrite®, Microbrite® or ColourVision® Bubbler Niches |
| Connection | IPX8 Quick Connect Plug supplied |
| Voltage | 12V AC - Not Suitable for DC Output Transformers |
| Power | 8W |
| IP rating | IPX8 |
| Operating temperature | 0°C to +40°C ambient |
| Care & warranty | |
| Usage | Run the light for at least 30 minutes per week, all year round |
| Warranty | 12 month manufacturer’s warranty |
