Which light is right for your NEW pool?
Concrete, fibreglass, vinyl and plunge pool lighting explained
Choosing a pool light isn’t just about picking a colour. The type of pool you’re building plays a major role in determining which light will give you the best fit, finish and performance.
Concrete, fibreglass and vinyl pools are constructed differently, which means the ideal mounting system and light design can differ too. Then there are plunge pools, steps, benches and other compact areas where a full-sized pool light may not be the best solution.
So, which pool light is right for your pool?
| Pool Type / Application | Our Pick | Why |
|---|---|---|
| Concrete pools | Quantum | Premium flush-mounted solution designed for concrete construction |
| Fibreglass pools | Argon | Purpose-designed for fibreglass installation with a slim, streamlined profile |
| Vinyl-lined pools | Atom | Dedicated vinyl mounting system for secure installation |
| Plunge pools & compact areas | Titan | Ultra-compact design ideal where space and scale matter |
| Steps, benches & shallow zones | Titan | Targeted illumination for areas a main pool light may not reach effectively |

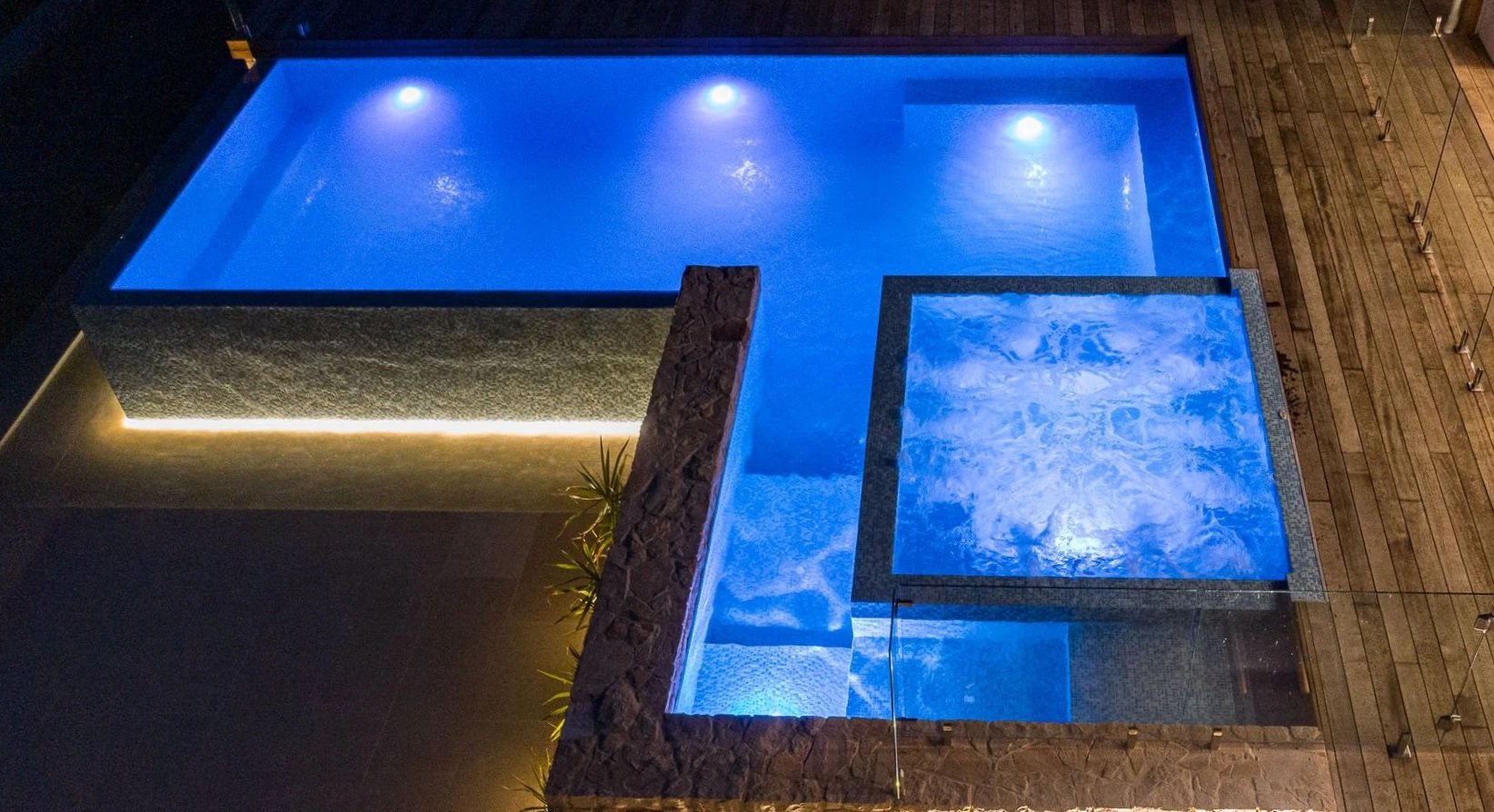

Pool by WeBuild Pools Featuring Quantum MULTIPLUS & Matrix Strip Lighting.
Best Pool Light for Concrete Pools: QUANTUM
Concrete pools provide the greatest flexibility when planning pool lighting. Because lighting positions and niches can be planned as part of the pool construction, there’s an opportunity to achieve a clean, integrated finish while positioning lights for the best possible coverage.

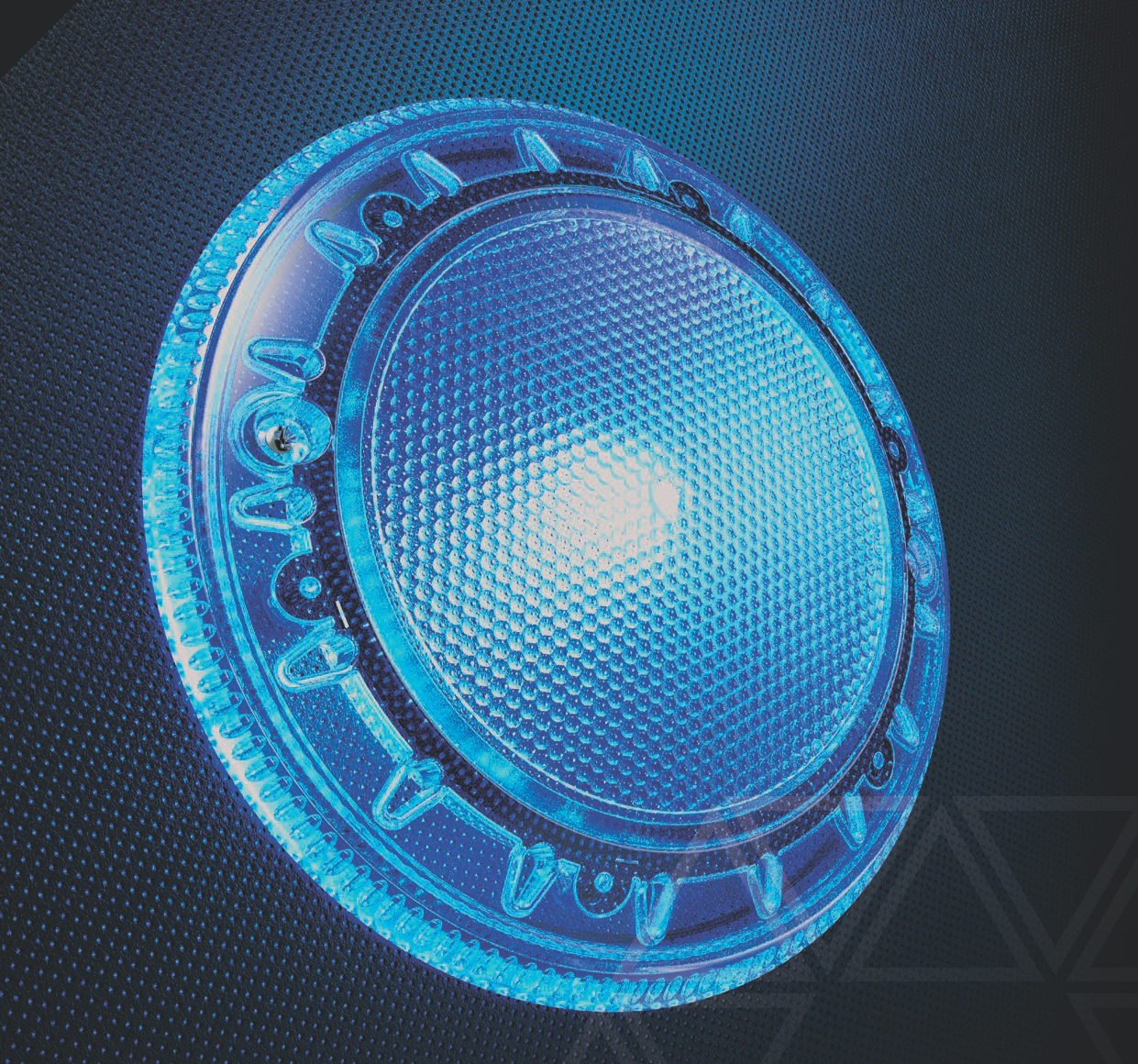

QUANTUM
Product SKU : WNC
Quantum is Spa Electrics’ flagship flush-mounted pool light for concrete pools, combining powerful illumination with a minimal in-pool profile.
Why choose Quantum for a concrete pool?
Flush-mounted design for a clean, integrated finish
Powerful illumination suited to full-sized pools
Clear rim minimises the light’s appearance during the day
Self-adjusting alignment system helps achieve a precise finish
IPX8-rated Quick-Connect Plug for easier installation and servicing
Available in Deep Blue, Legacy Blue, Warm White, Cool White and MULTIPLUS RGB+White options
Compatible with iRIS Lighting Controllers
Designed and manufactured in Australia
Think Beyond the Main Pool Lights
Don’t expect one type of light to do every job.
Steps, large benches, beaches and shallow zones can interrupt the spread of light and create areas of shadow. Adding compact Titan lights during the design stage can provide targeted illumination in these areas and create more balanced lighting throughout the pool.
Planning these additional lights before construction is far easier than trying to add them later.

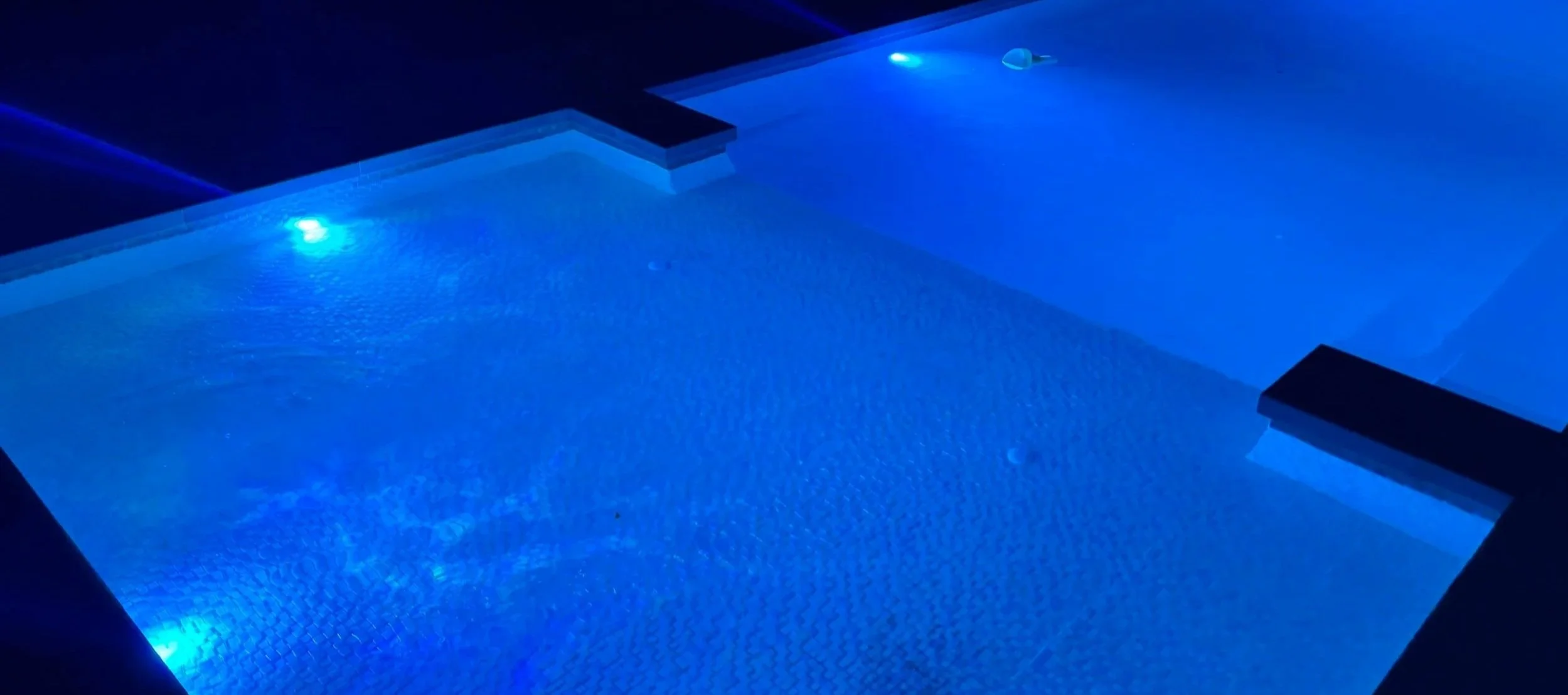

Pool by Leisure Pools Sydney featuring Argon and Titan MULTIPLUS lights.
Best Pool Light for Fibreglass Pools: Argon
Fibreglass pools have their own installation requirements. Unlike a concrete pool, the pre-manufactured shell means the lighting system needs to work specifically with fibreglass construction while maintaining a clean profile against the pool surface.
Lighting positions are also typically determined early in the pool manufacturing and installation process, making it important to select the right fitting from the outset.

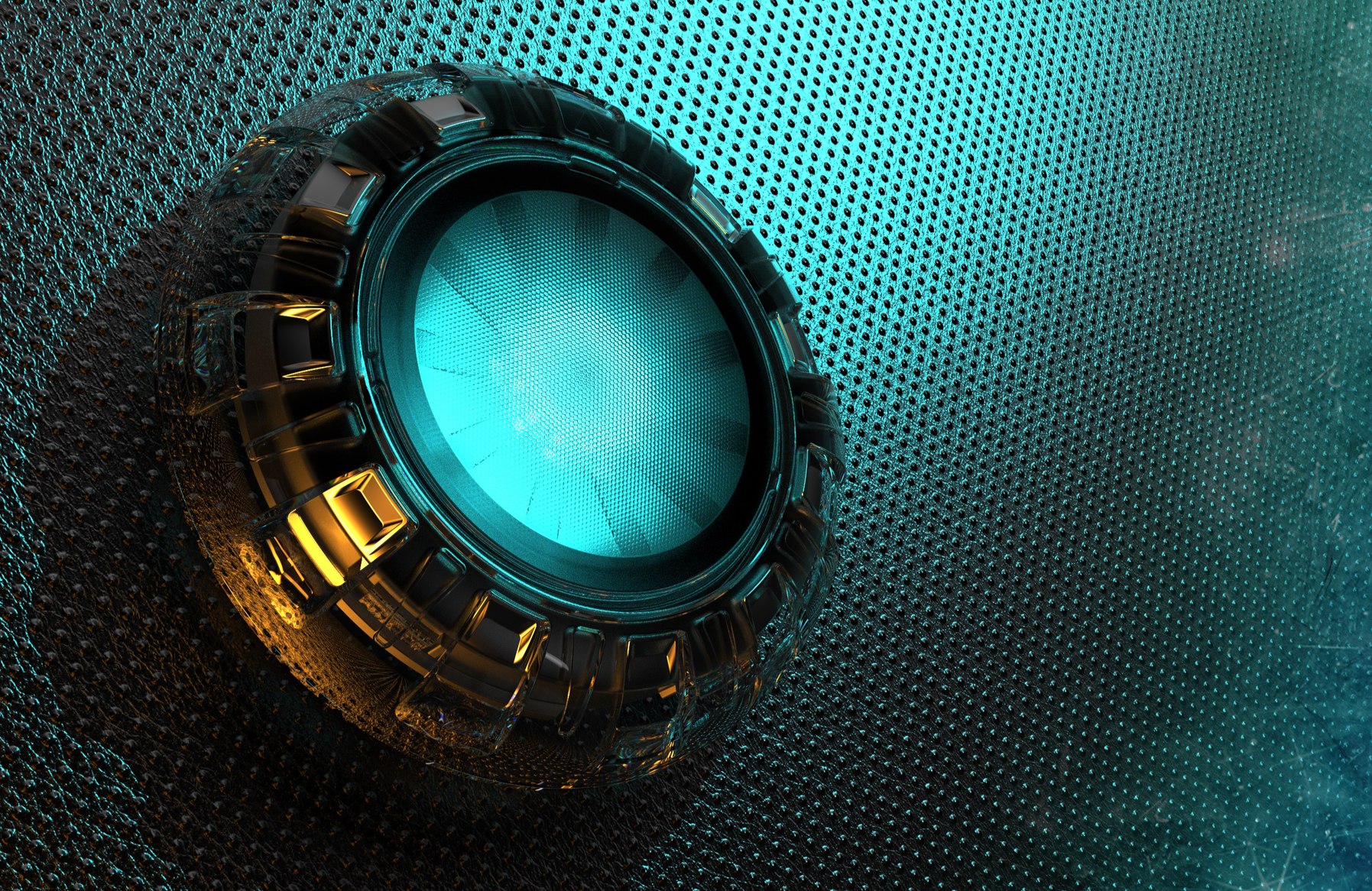

ARGON
Product SKU : AGF
Designed specifically for fibreglass installations, Argon combines a slim, contemporary profile with high-efficiency illumination and Spa Electrics’ MULTIPLUS colour technology.
Why choose Argon for a fibreglass pool?
Purpose-designed for fibreglass installations
Slim 22mm profile
Compact 130mm diameter
Redesigned niche with 90-degree cable take-off
IPX8-rated Quick-Connect Plug
Market-leading brightness and efficiency
MULTIPLUS RGB+White LED technology
Compatible with iRIS lighting controllers
Designed and manufactured in Australia
Choose a Light That Works With Your Pool Controller
If you're planning to use a smart pool controller or automation system, don't leave compatibility as an afterthought.
Not all colour-changing pool lights communicate with every controller. Checking compatibility before installation ensures you'll be able to access the colours, light shows and control features you expect without unexpected limitations.
Spa Electrics MULTIPLUS lights are designed to work with all major pool controllers, including AstralPool, Dontek, Pentair, SplashME, Hayward and many more, giving you the flexibility to choose the automation system that's right for your pool.

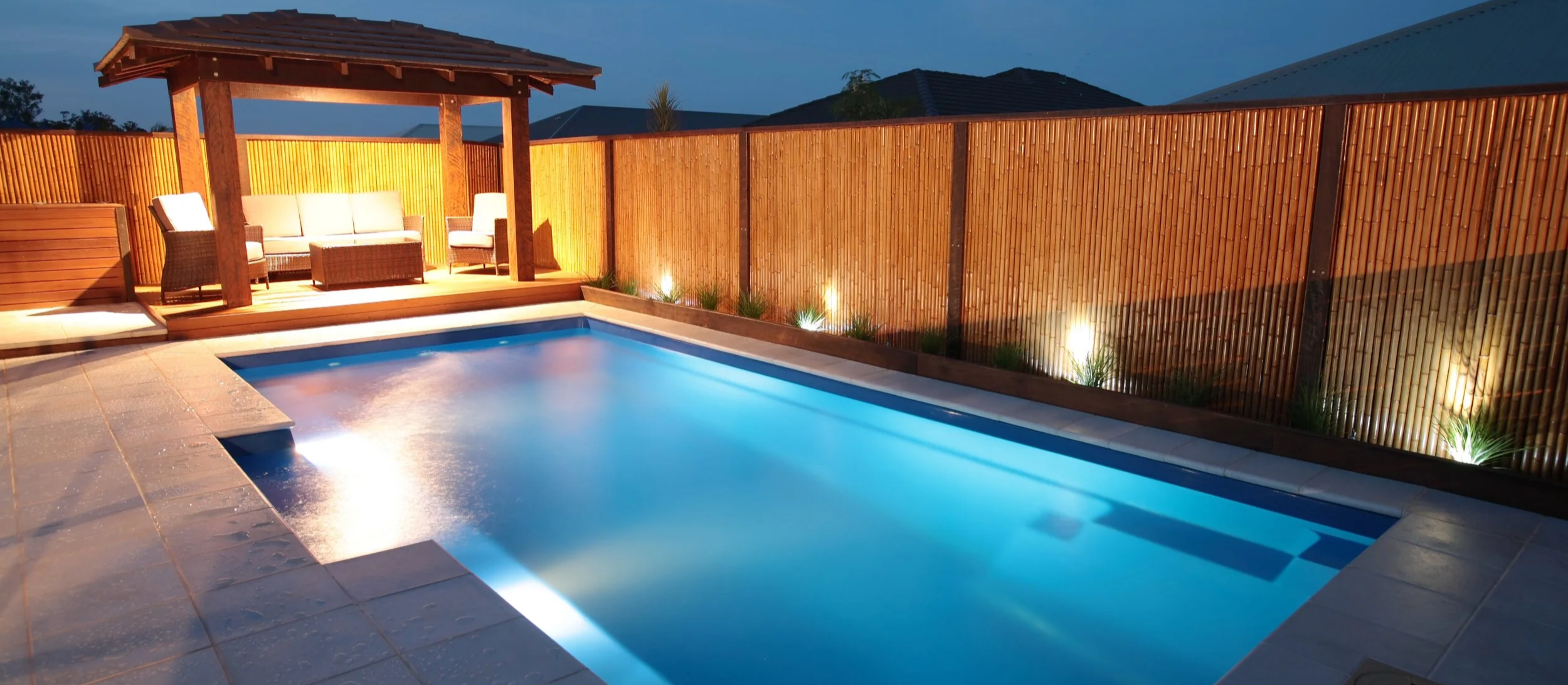

Pool by Narellan Sunshine Coast featuring ATOM LED lights in Legacy Blue
Best Pool Light for Vinyl Pools: Atom
Vinyl-lined pools require a different approach to pool lighting.
Because the liner itself forms part of the pool’s waterproof surface, any penetration for a pool light needs a purpose-designed installation system that securely seals around the liner.
That makes choosing a light specifically designed for vinyl construction particularly important.

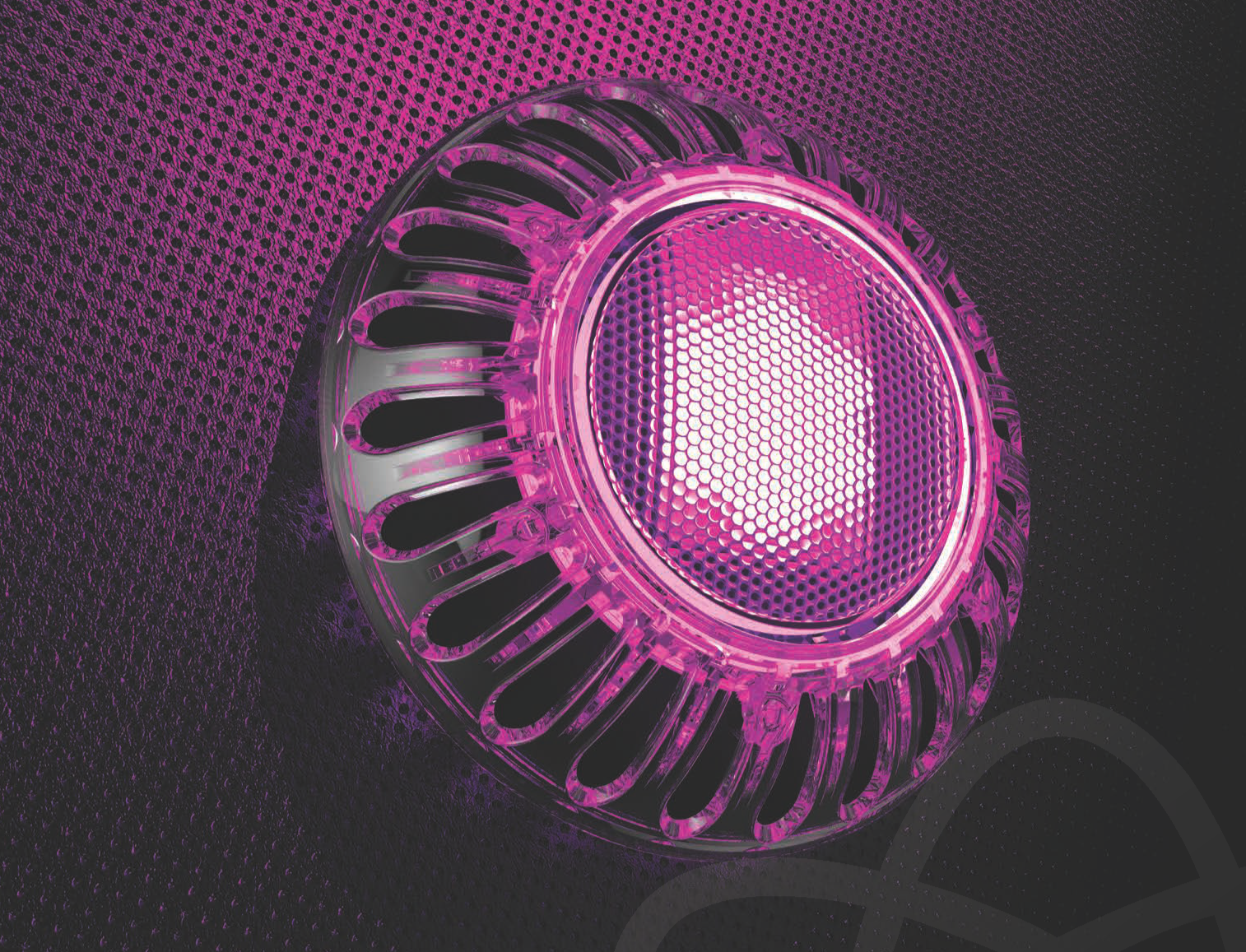

ATOM
Product Code : EMV
Compact but powerful, Atom offers a dedicated vinyl installation solution designed to securely integrate with vinyl-lined pools.
Why choose Atom for a vinyl pool?
Specially designed vinyl niche, clamp and adaptor
Compact design suited to space-conscious installations
Powerful illumination from a small fitting
Patented detachable Direct-Connect electrical connection
Purpose-designed for reliable vinyl pool installation
Available in Deep Blue, Legacy Blue, Warm White, Cool White and MULTIPLUS RGB+White options

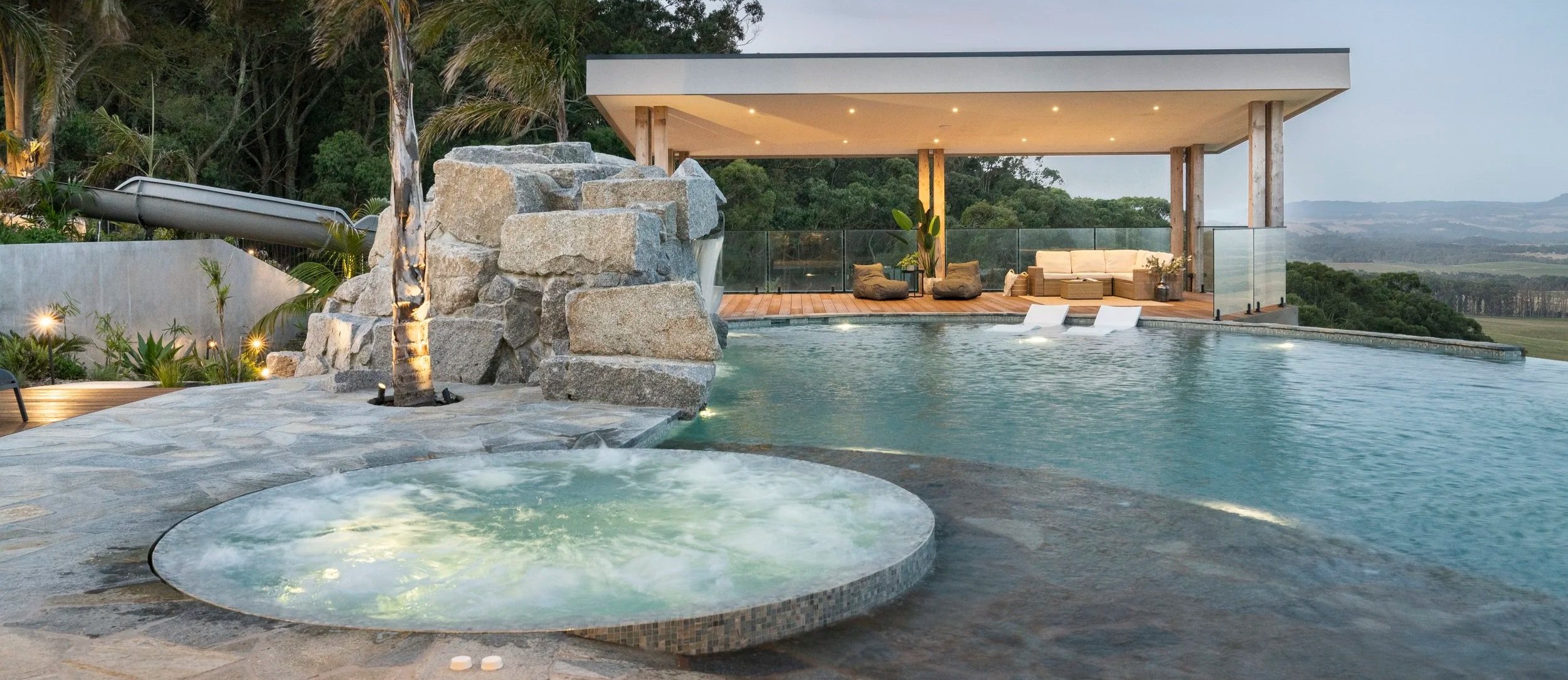

Pool by APEX Pools featuring Quantum MULTIPLUS lights
Best Light for Plunge Pools and Compact Spaces: Titan
Not every pool needs a full-sized pool light.
Plunge pools, compact architectural pools and smaller water features often benefit from lighting that is proportionate to the space. They may also have limited room available for installing a traditional full-sized fitting.
The same applies to areas within a larger pool, such as steps, benches and shallow zones, where targeted lighting can improve visibility and help highlight architectural details.

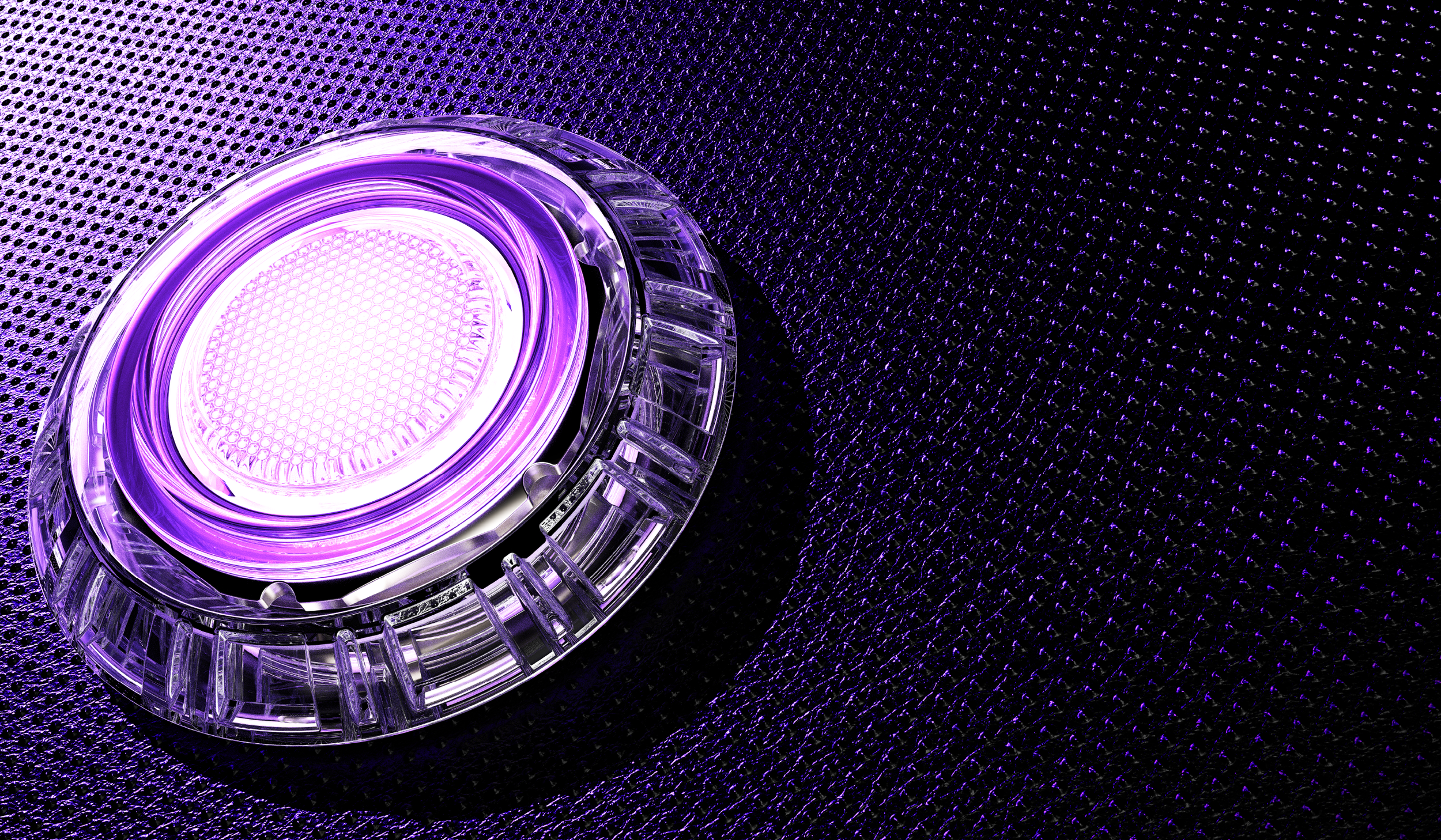

TITAN
Product Code : TIC
Titan is Spa Electrics’ ultra-compact pencil light, designed for applications where a smaller fitting gives designers and builders greater flexibility.
Why choose Titan?
Ultra-compact design
Ideal for steps, benches, swim-outs and shallow areas
MULTIPLUS RGB+White LED technology
Titanium heat sink engineered for effective thermal management
IPX8-rated Quick-Connect Plug for easy connection and servicing
Designed to complement the wider Spa Electrics MULTIPLUS lighting range
Designed and manufactured in Australia
Ideal for:
Plunge pools
Compact architectural pools
Steps and stairs
Benches and swim-outs
Shallow zones
Water features
Overflow edges
Reflective ponds
Use Titan Alongside Your Main Pool Lighting
In larger pools, Titan doesn’t necessarily replace the main pool lights — it complements them.
A well-designed lighting plan might use Quantum or another full-sized pool light for the main body of water, with Titan positioned strategically around steps, benches, beaches and other areas that need additional illumination.
The result is a more balanced, layered lighting design that enhances visibility, highlights architectural features and creates a more refined finish than simply adding extra brightness from one direction.
Common Pool Lighting Mistakes to Avoid
Choosing the right model is only part of getting pool lighting right.
Some of the biggest lighting problems come down to decisions made during the planning stage. Here are some of the most common mistakes to avoid.
| Common Mistake | Why It Matters |
|---|---|
| Choosing the light before considering the pool type | Concrete, fibreglass and vinyl pools have different installation requirements. Start with the pool construction, then choose a light and mounting system designed for that application. |
| Leaving light placement until too late | Poor placement can create glare, shadows and uneven illumination. Plan lighting positions early, alongside steps, benches, swim-outs and other structural features. |
| Assuming one light will illuminate everything | Steps, beaches, benches and unusual pool shapes can interrupt light spread and create dark spots. These areas may benefit from dedicated compact lighting. |
| Choosing based on lumens alone | Brighter isn’t automatically better. Light distribution, efficiency, placement, pool size, shape and interior colour all affect how the pool will actually look after dark. |
| Forgetting control compatibility | Not every colour-changing light works with every controller or automation system. Check compatibility before purchasing and plan the lighting and control system together. |
| Mixing lights without checking colour compatibility | Different LED models, generations and colour technologies may not produce an exact colour match. Always identify existing lights before adding or replacing a fitting. |
| Not thinking about future servicing | Consider how the light connects, how easily it can be accessed for servicing and whether compatible replacement options will be available in the future. |

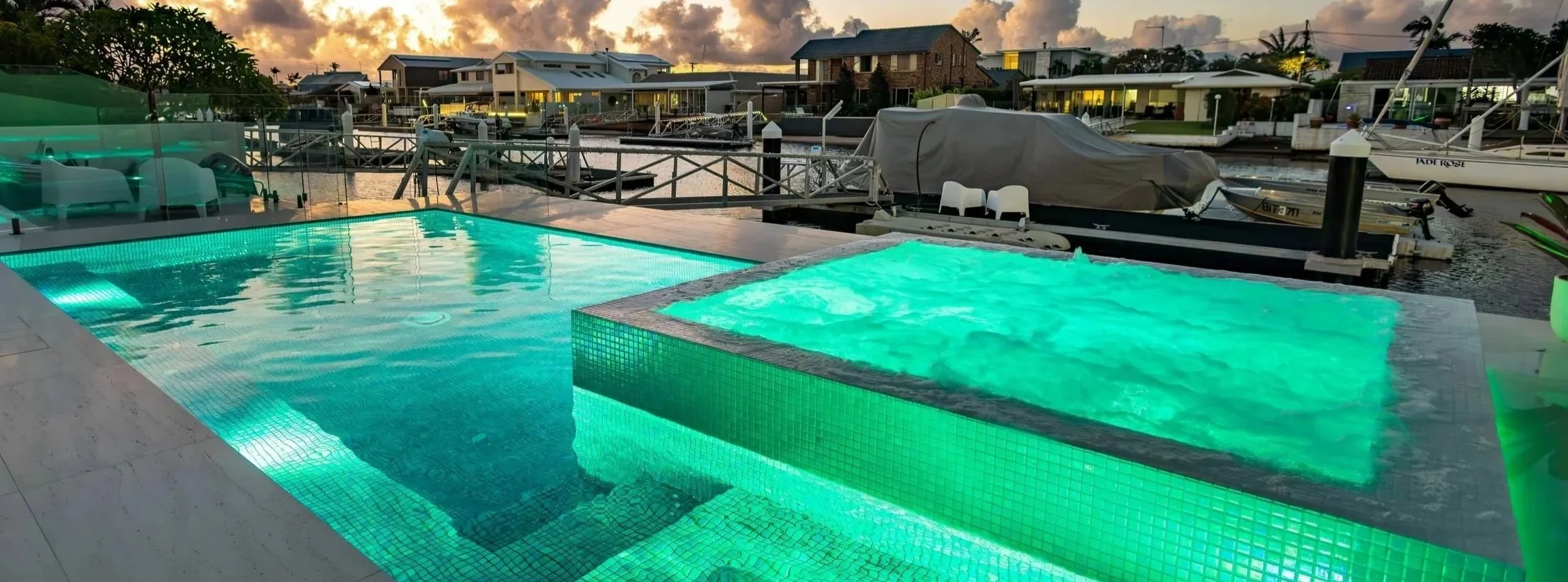

Pool by Liquid Earth featuring Quantum MULTIPLUS Lighting
Already Have a Pool? Choosing a Replacement Light Is Different
Spa Electrics’ Retro Replacement Guide
If you’re replacing an existing pool light, choosing the right product isn’t always as simple as matching it to your pool construction.
Existing niches, mounting systems, cable arrangements and the make and model of the original light can all affect which replacement or retrofit options are suitable.
Before purchasing a replacement pool light, identify:
Your existing light brand and model, if possible
Your pool construction type
The existing niche or mounting arrangement
Whether you are replacing one light or multiple lights
Whether colour matching with existing lights is important
Your existing lighting controller or automation system
Spa Electrics offers a range of retrofit pool lighting solutions designed to replace many common existing pool lights without requiring major changes to the pool structure.
Checking compatibility first will save considerable time and expense.
Spa Electrics’ RETRO Range & iRIS Lighting Controllers
Need Help Choosing the Right Pool Light?
With 50 years of experience designing and manufacturing pool lighting in Australia, Spa Electrics develops purpose-built solutions for concrete, fibreglass, vinyl and retrofit applications, helping create pools that look just as impressive after dark as they do during the day.
Whether you’re building a new pool or replacing an existing light, choosing the right product at the design stage can make all the difference.
Explore the Spa Electrics range of LED pool lights and underwater lighting solutions, use our retrofit compatibility resources to find a replacement for an existing light, or speak with our team for help selecting the right solution for your pool.

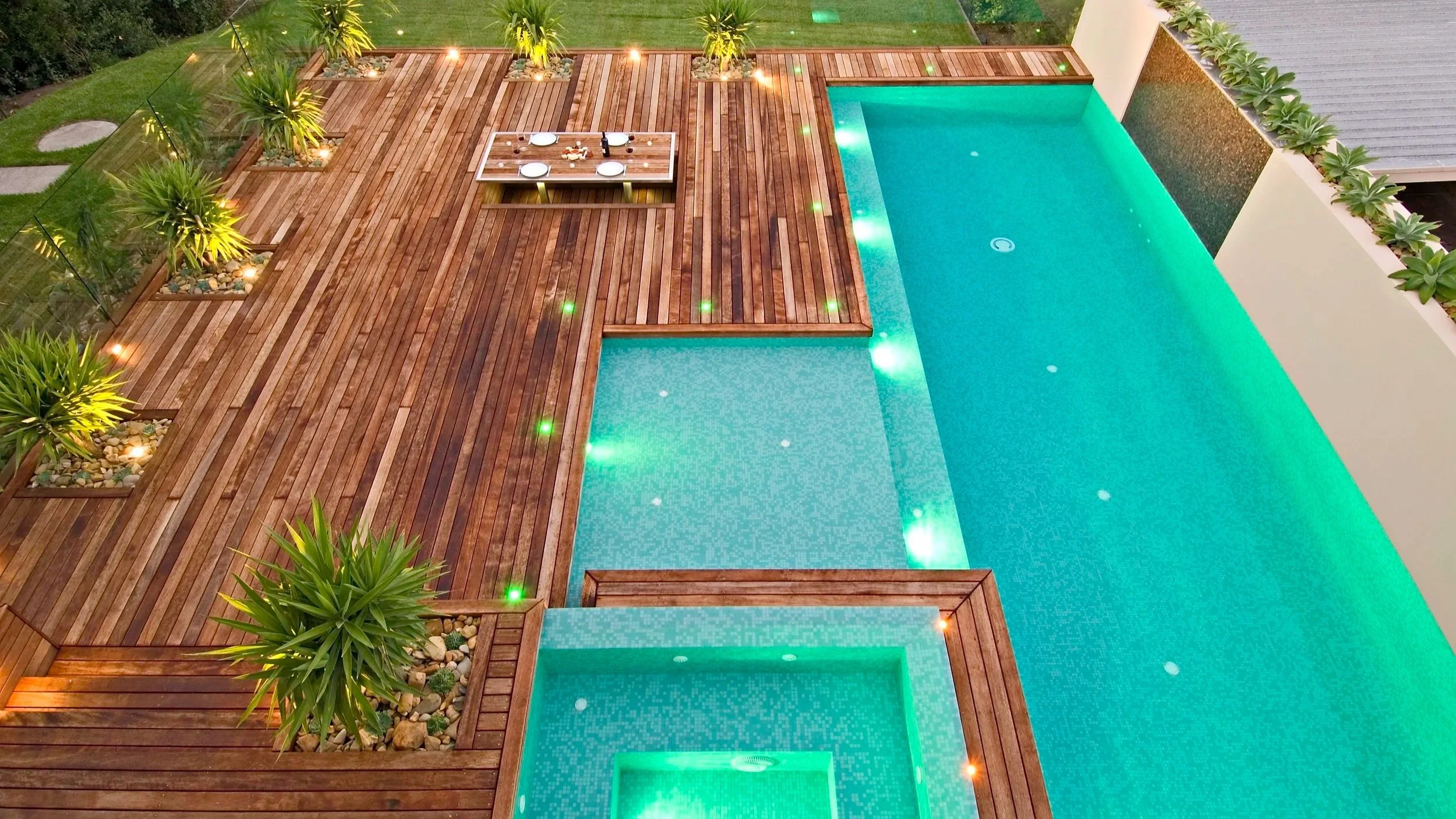

Pool by AlohaPools Pools & Spas featuring Quantum MULTIPLUS Lights
