  • MULTI PLUS Now Available
  • iRIS Compatible
  • High intensity Ceramic Light Engine (LED) Technology
  • Market leading brightness and efficiency
  • Available in Blue, White, Multi Colour Or MULTI Plus

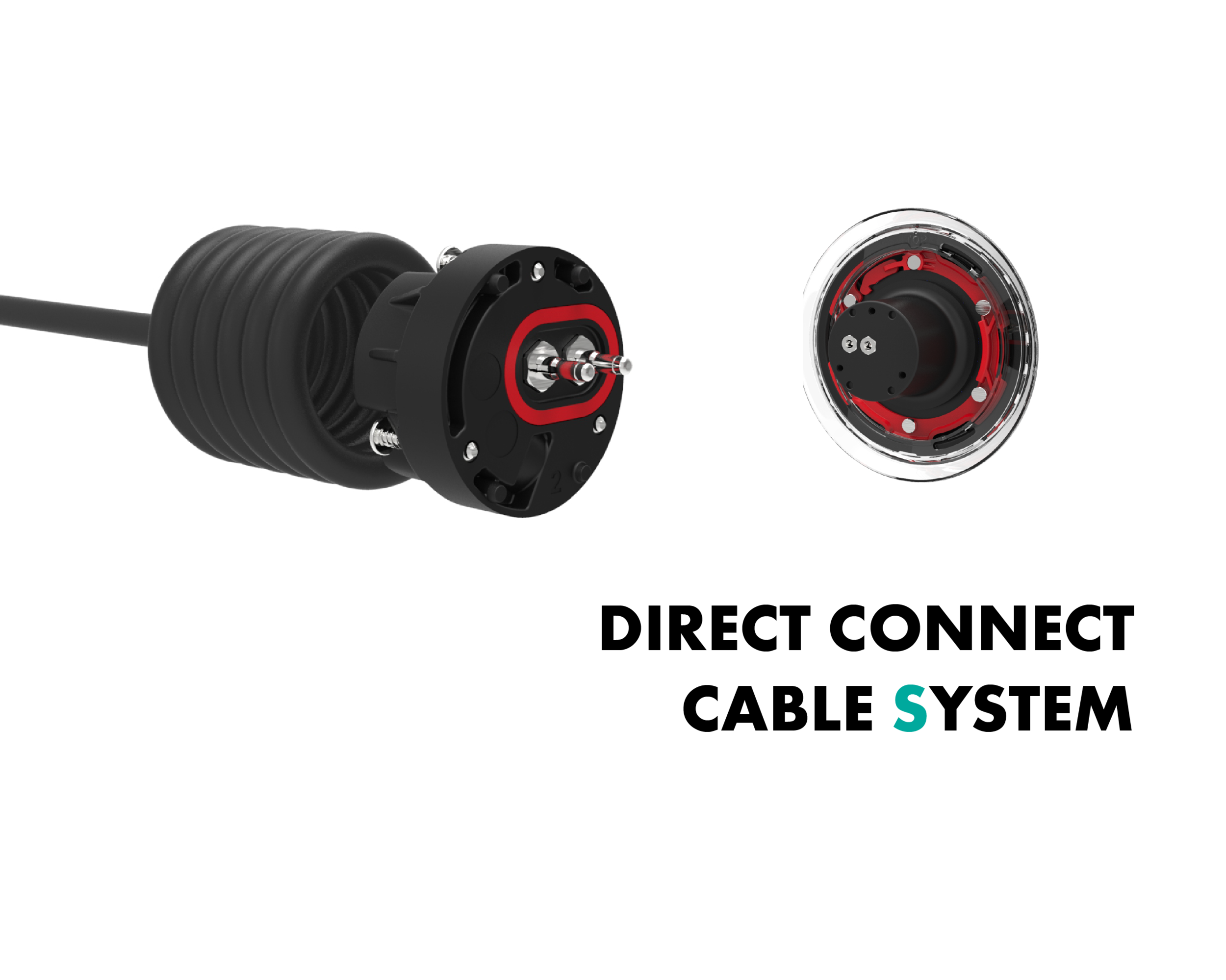

  • Direct-Connect Patented detachable electrical connection
  • Suitable for Concrete, Fibreglass & Vinyl pools
  • IPX8 waterproof rating
  • Designed and manufactured in Australia




Technical Specifications

Light Source Ceramic Light Engine (LED)
Available Colours MULTI PLUS
Multi Colour
Blue (465nm)
White (4000K)
Green (525nm)
MULTI PLUS Compatibility Wall Switch Operation
iRIS Lighting Controller
AstralPool Connect 10®
Pentair IntelliTouch® / EasyTouch®
Zodiac/Jandy RS (REV R - Current)
Zodiac TRi®
IP Rating IPX8
Installation Types Concrete / Fibreglass / Vinyl
Voltage 12v
Wattage 12watts
Ambient Operating Temperature 5 °C to +40 °C
Warranty 12 Month Manufacturers Warranty
